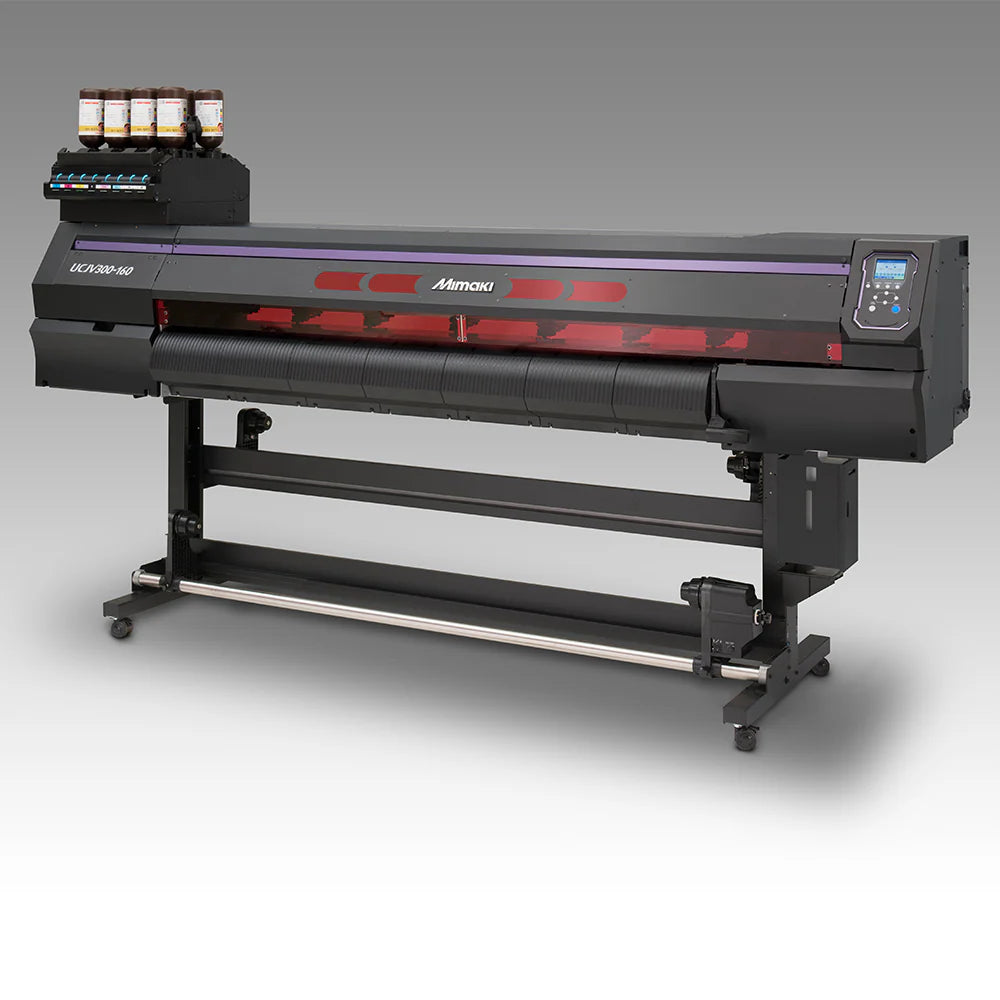

Mimaki UCJV300-160 UV-LED Printer / Cutter – 64"

$22,999.99

Pickup at our Hackensack, NJ location. Ready 30 minutes after ordering (in-stock items). Hours: Mon–Fri 8:00 AM–4:30 PM, Sat 8:00 AM–1:00 PM. You may not get a “ready” notification — just come in after 30 minutes. Pre-coated screens and custom color matches require 24 hours.

SKU: UCJV300-160

Ships at carrier rate. This item is excluded from free shipping — freight is calculated from its size and weight at checkout, or ask us for a delivered quote. Shipping policy

UV-LED printing and contour cutting in one 64-inch machine.

The Mimaki UCJV300-160 prints with UV-curable LED ink and cuts on the same pass-through, so decals, labels, window graphics and vehicle work come off the roll finished. UV-LED ink cures instantly — no outgassing wait before lamination or application, and no solvent ventilation requirement.

Its layered printing capability builds up to five layers in a single pass, which is what produces the day/night backlit graphics the UCJV series is known for: one image lit from the front, a different image when lit from behind.

Confirmed specifications — UCJV300-160

Print width: 63.4" (1,610 mm)
Maximum media width: 63.8" (1,620 mm)
Ink: UV-curable LED — LUS-170 or LUS-200
LUS-170 colours: Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, White, Clear
LUS-200 colours: Cyan, Magenta, Yellow, Black, White
Print resolutions: 300, 600, 900 and 1200 dpi
Cutting speed: up to 16.5"/sec, maximum cutting pressure 450 g
Power: single-phase AC100–120V or AC200–240V (±10%), 50/60 Hz
Dimensions: 114.2" W × 30.6" D × 58.1" H (2,900 × 776 × 1,475 mm)
Weight: 414.5 lbs (188 kg)
Software included: RasterLink6 Plus with ID Cut

Mimaki core technologies

ID Cut — unattended, sequential cutting driven by data embedded in the print
Layered printing — up to five layers for day/night and textured effects
MAPS (Mimaki Advanced Pass System) — reduces banding
NCU (Nozzle Check Unit) and NRS (Nozzle Recovery System)
UISS (Uninterrupted Ink Supply System)
